Product Lineup

Complete range of 3ono LED module housing types

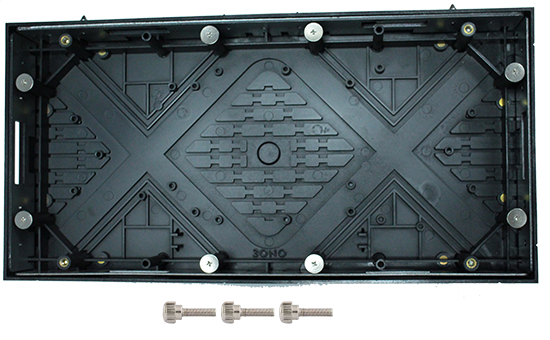

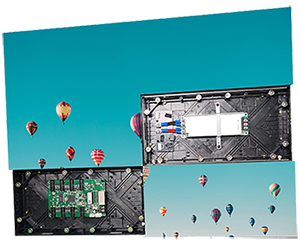

Basic Type

- Suitable for small LED displays
- You can easily create text message boards, signs, and logo signs
- Can be used indoors and for semi-outdoor use.
- Bind the LED module housing with square nuts and M4 bolts
- Existing module power and datacable are available

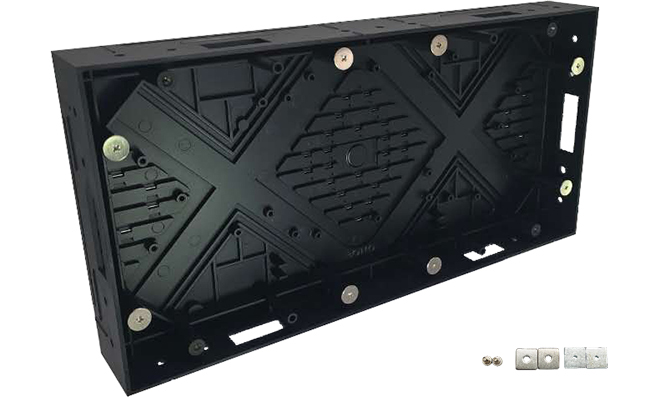

Standard Type

- It is suitable for small pitch modules that require reputation.

- The contact area of the reinforcing steel plate is large, so it has strong bonding force and prevents deformation

- A reinforcing steel plate is attached to the LED module housing, so it is combined only with M4 bolt

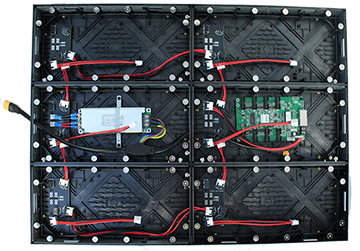

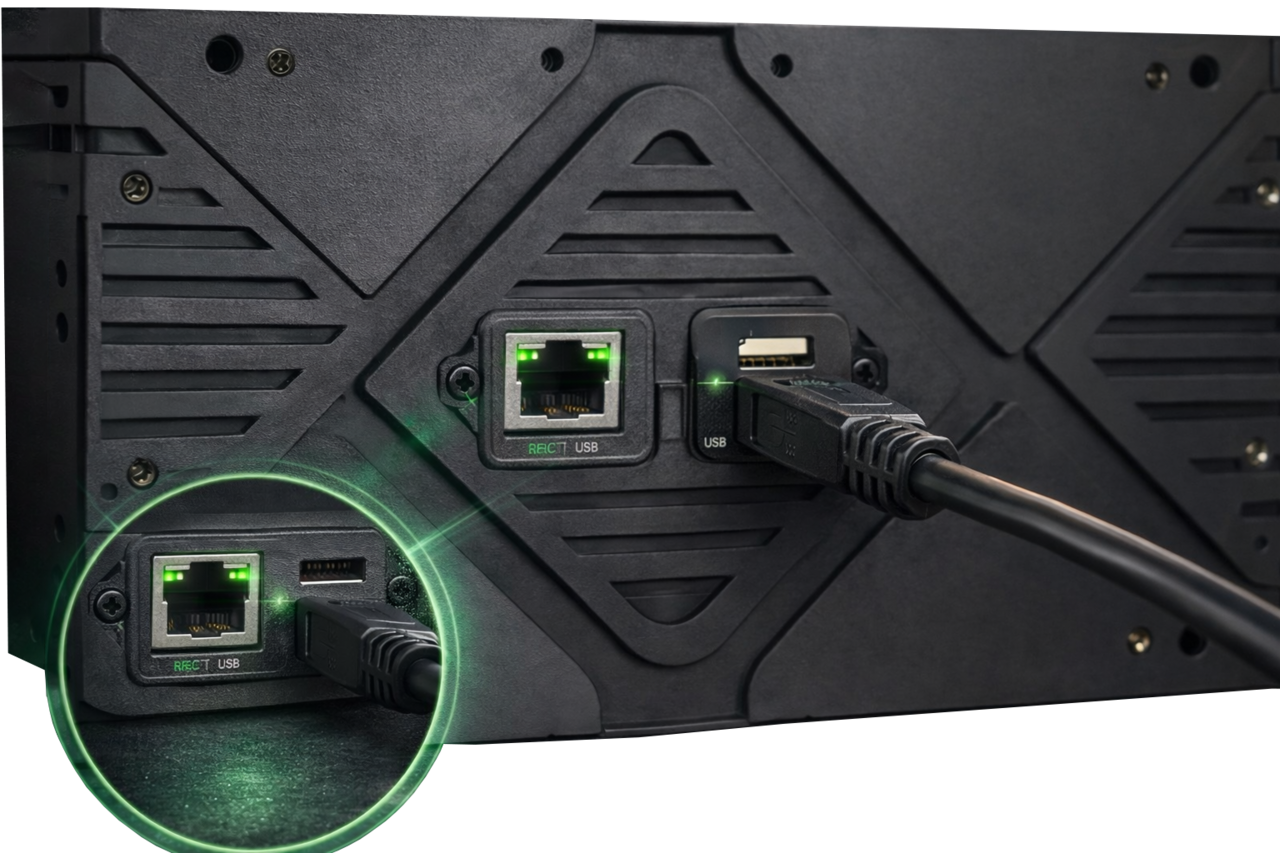

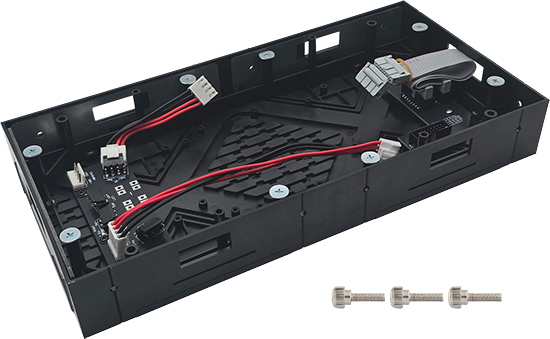

Professional Type

- Suitable for size of semi-medium and medium about 100~200 inches

- Expandable power PCB board and Datacable PCB board inside for easy interconnection

- Be easy to maintain

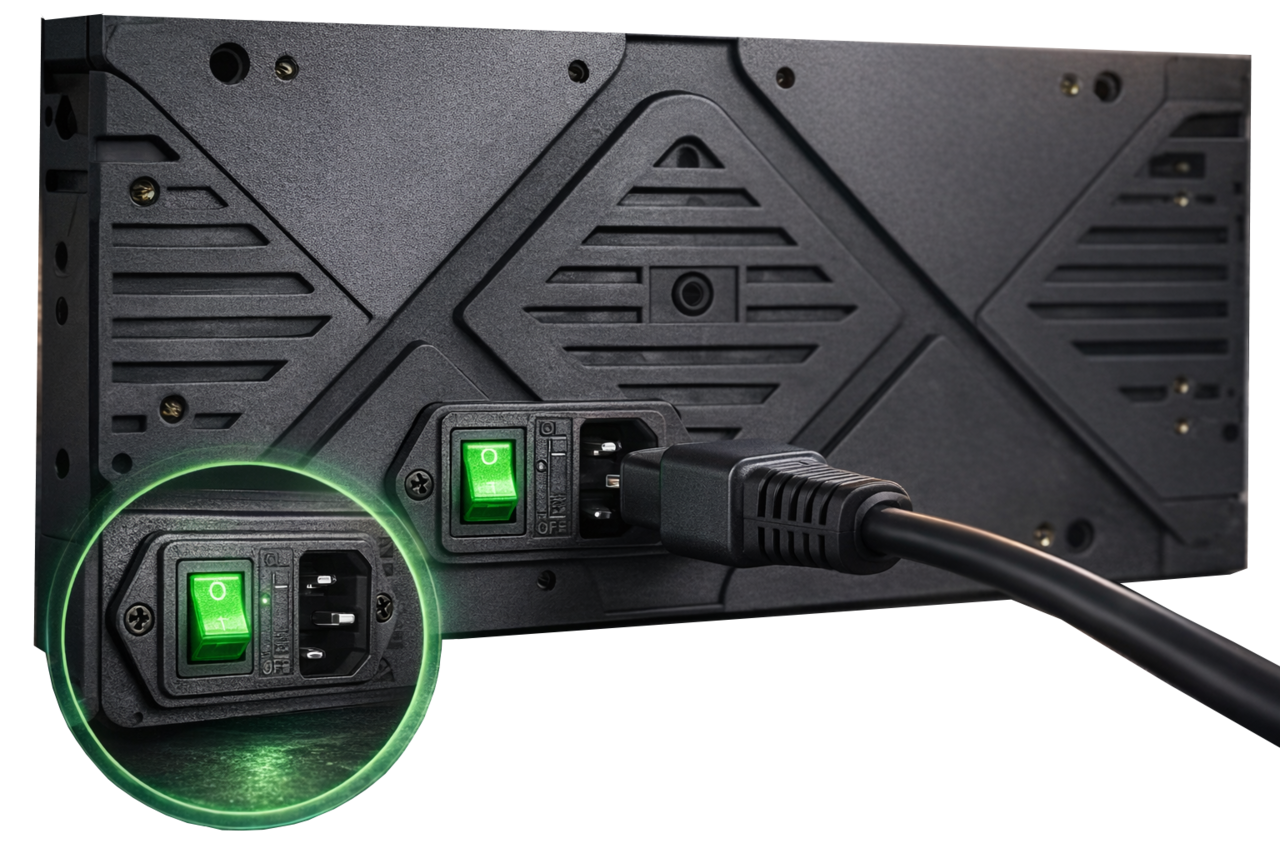

Switch type

- In the case of a small led display, a switch can be installed to facilitate power supply
- On/off switches are installed on the side or back of the led display
- I used a socket that allows me to use a PC power line.
- For electrical safety, a switch with a built-in protective fuse was used
- The switch has a built-in LED to visually identify the presence or absence of power

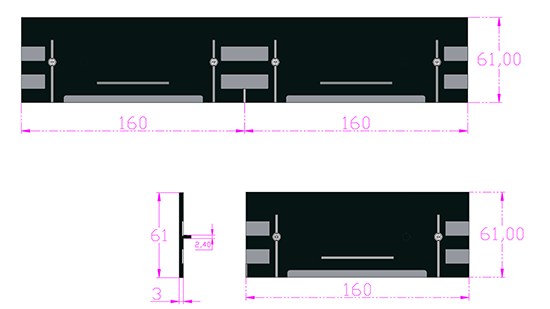

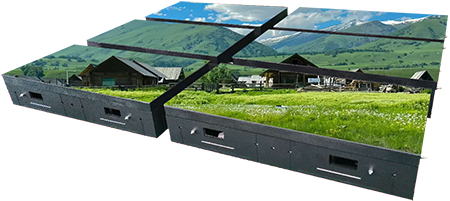

Edge Bar

-After completing the led display board, use it to supplement the aesthetics of the upper, lower, left, and right sides
- Insert the edge bar mounting holder into the empty screw hole on the side and press to fix it
- There are two types. 320 mm, 160 mm

- At this time, corner joints were inserted at each corner to maintain continuous beauty
- If it needs to be removed, it can be turned into a thin blade, such as a blade, in the gap

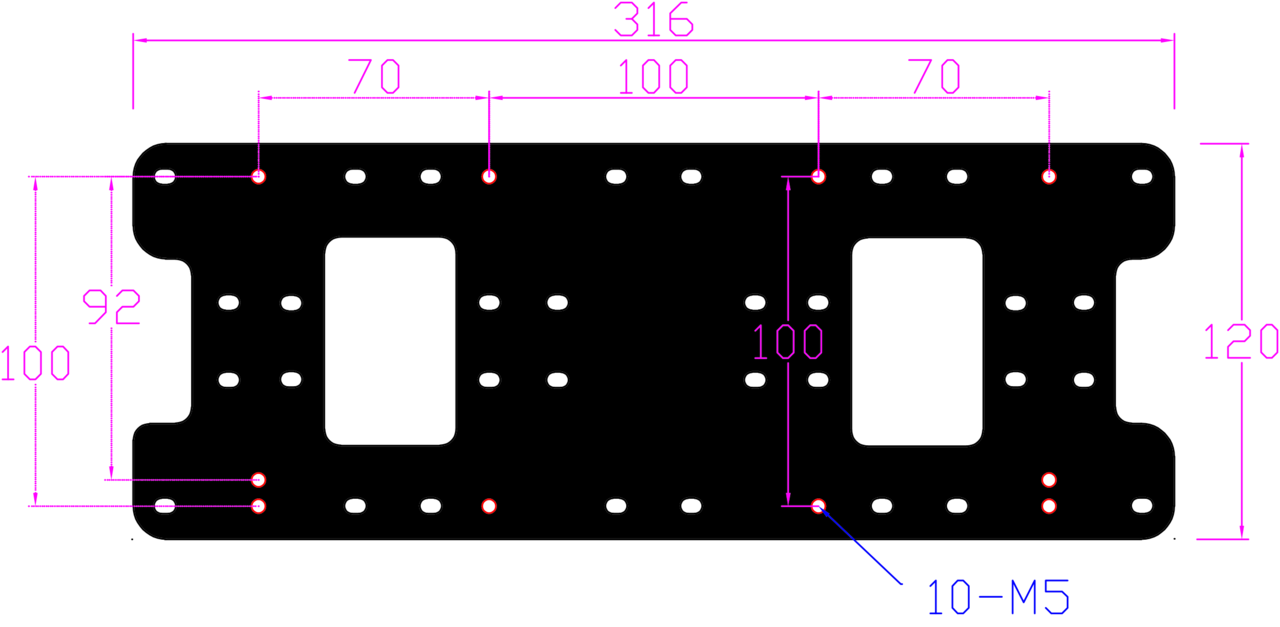

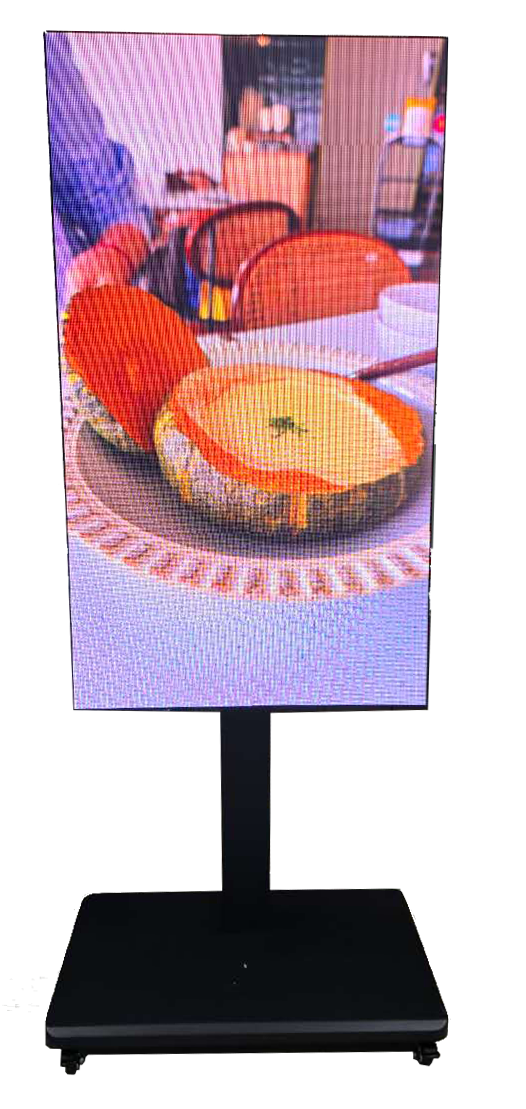

TV Stand Plate

- Compatible with the existing TV stand when making a poster stand type led display
- First, attach the plate to the led display and install VESA 100*100mm or Stand fixed
- At this time, it is safe to fix it using the screws provided
- If it is over 60 inches, it is recommended to use two

Modular Layout Configurations

Choose the array that fits your project

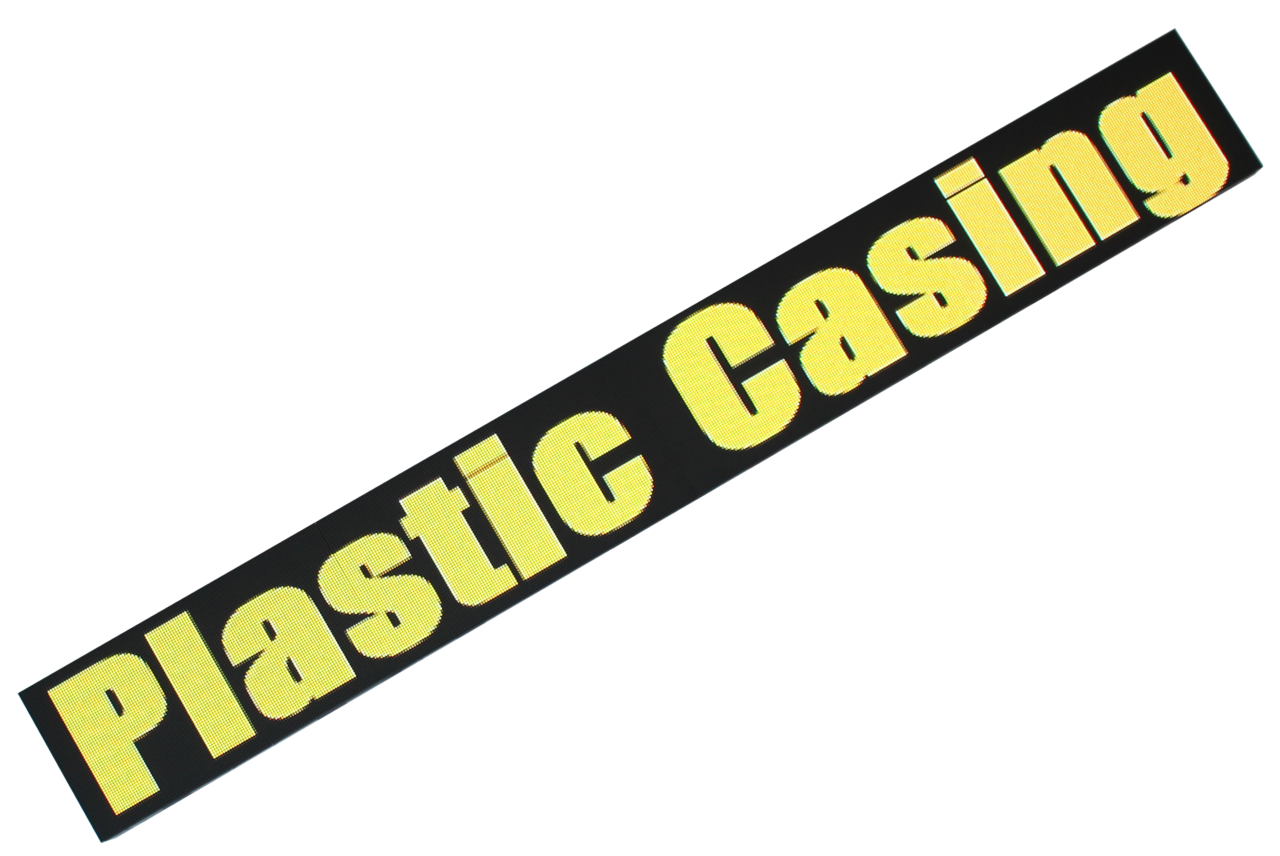

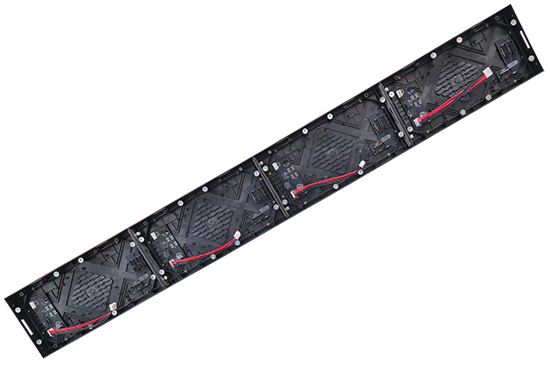

Banner Array


- Easy to deliver simple information, such as show windows and the top of the internal count
-A form that is often used to turn the frame of the interior

Modular Array


- Customized and connected to suit the conditions of the site
- Wall mount is possible only by self-assembly without separate construction

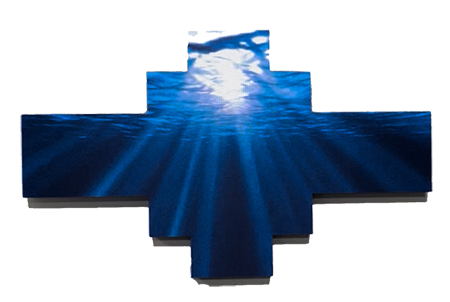

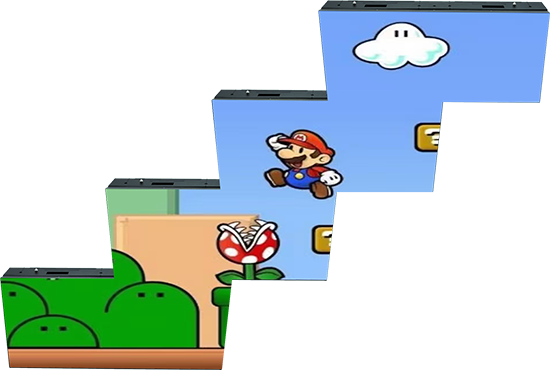

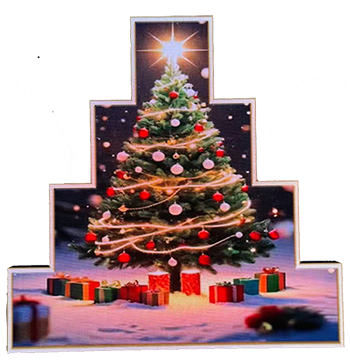

Complex Array


- It can be connected like a block to make it look like an interior or a sculpture led display
- You can combine various forms of creative arrangements
