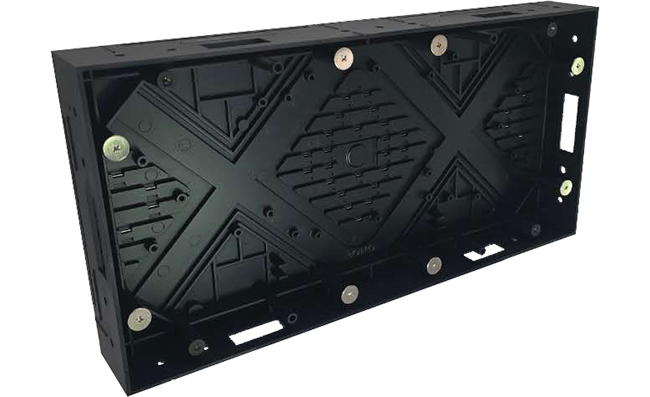

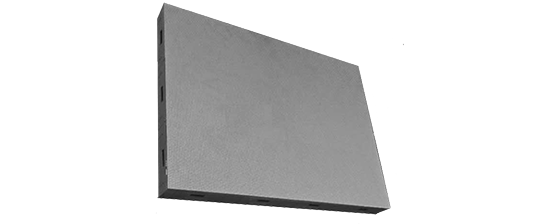

Plastic LED Module Housing 塑料箱体

Features:

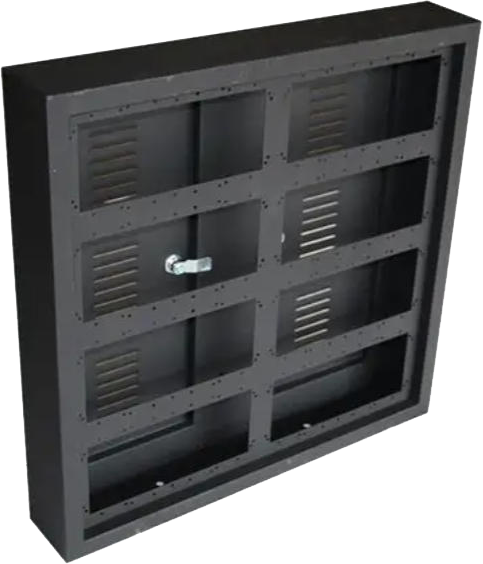

       -Lightweight module case (iron cabinet, 30% lighter than die casting).

          轻量级模块外壳(比铁箱体, 压铸铝轻30%)

       -It is made of PC+Glass material and is solid.

          PC加纤材料制成，非常坚固

       -Eco-friendly images are available.

          给人一种环保的感觉

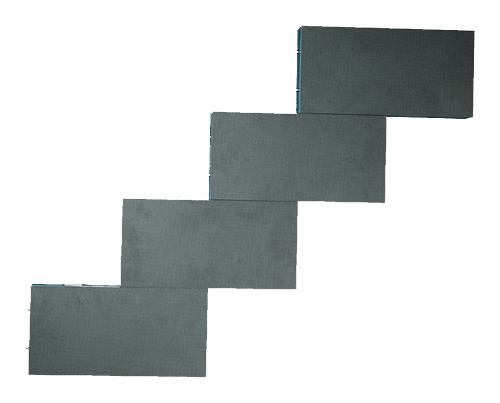

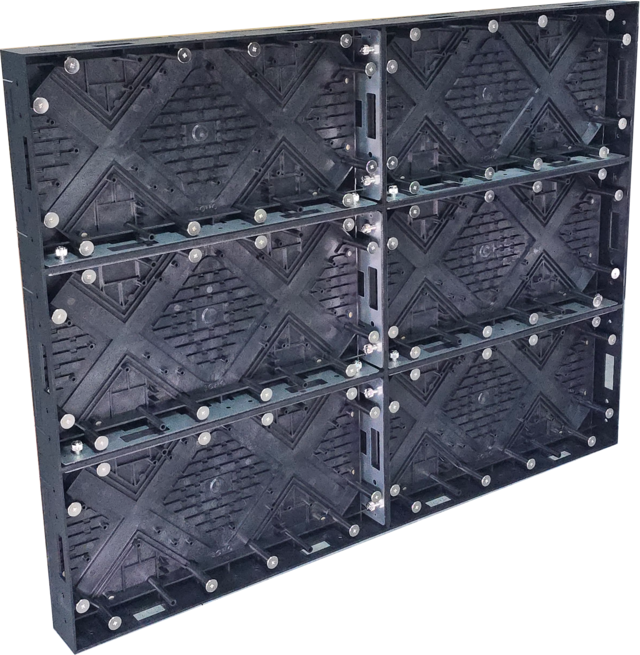

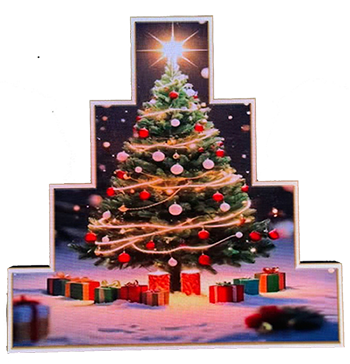

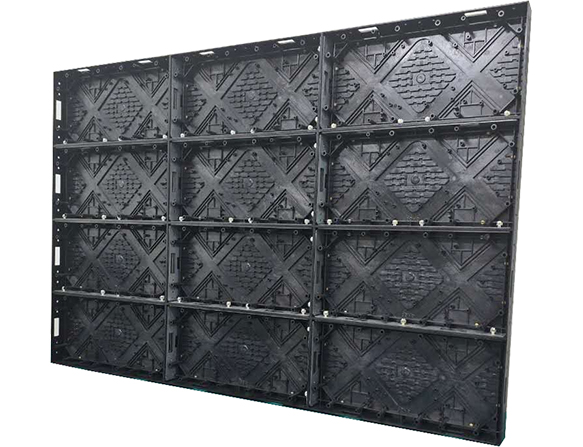

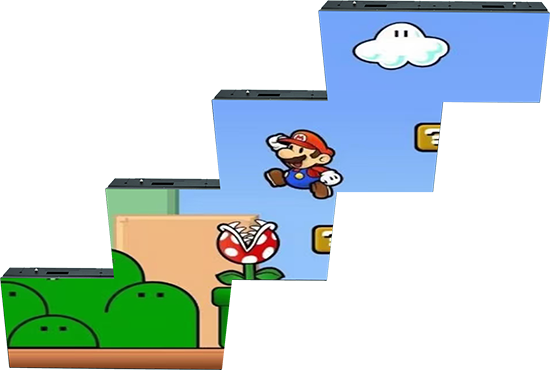

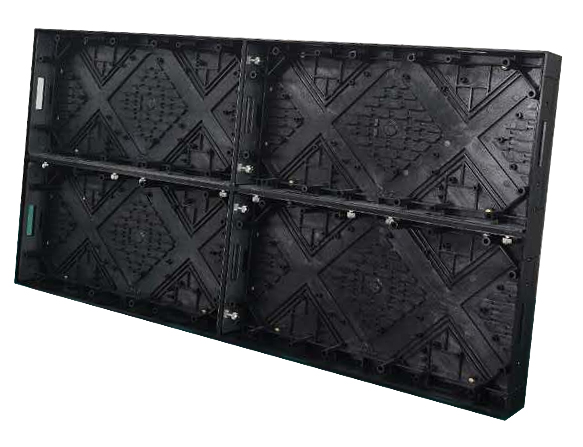

       -Like blocks, it is easy to expand up, down, left, and right.

          就像积木一样，很容易上下左右扩张

       -Applicable to 320*160mm P1.25 to P10 modules

          通用性高（适用于320*160 P1.25~P10模块)

       -It is easy to install and maintenance.

          易于安装和维护

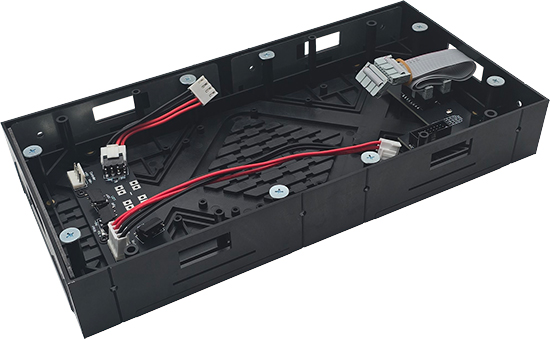

Structure:

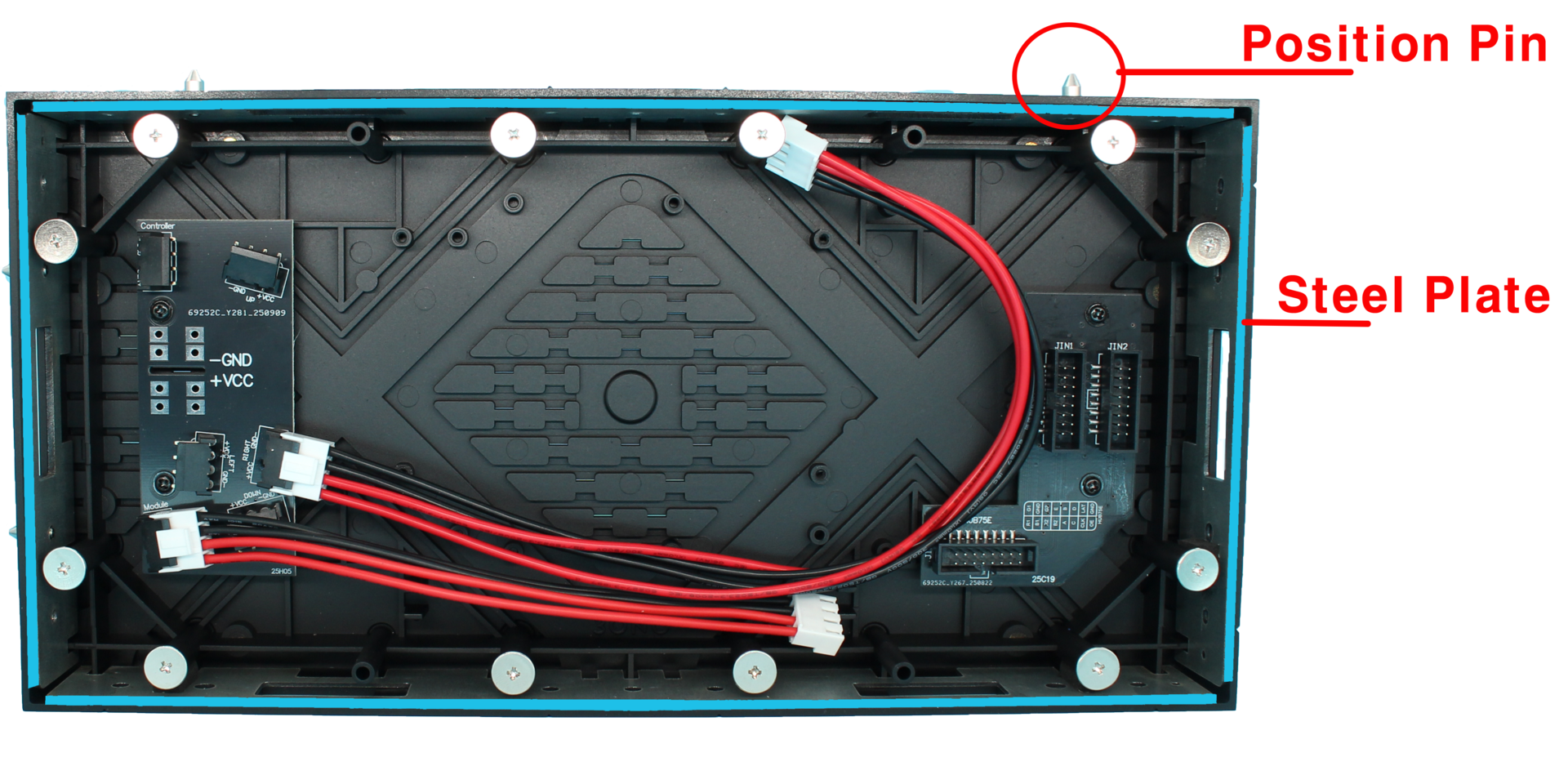

      -There is a coupling position(pin) for creating a floor plan.

      -Reinforced steel plates have been added to the side to increase the bonding force.

      -A side hole was made to allow the power line and data cable to pass through.

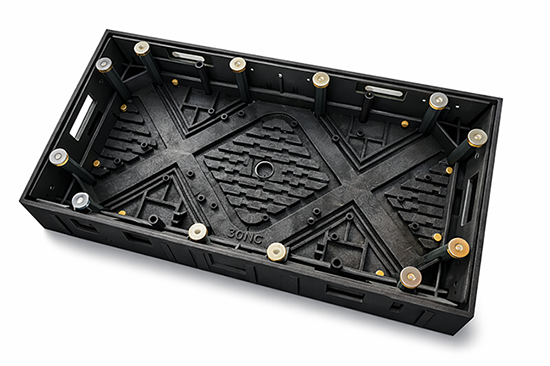

      -The column with a flat screw was placed in the same position as the magnet attached

         to the module.

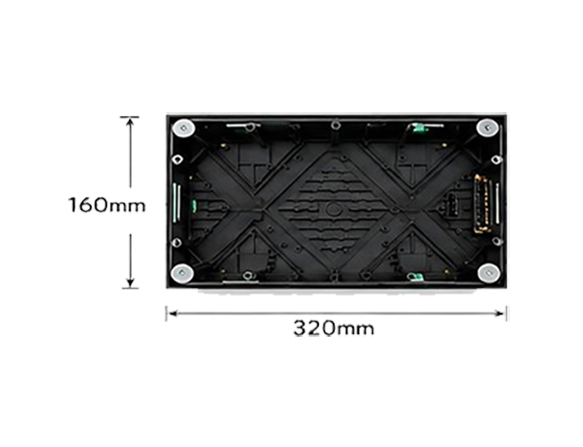

      -Size 319.8×159.8×45 mm

Combination method:
      -Adjust the housing to the groove or pin position and use a hand screw to join.

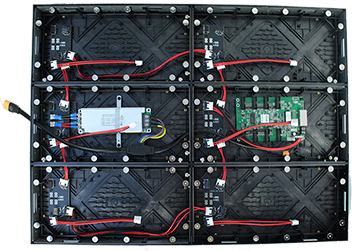

      -Secure the power and controller in a specific position.

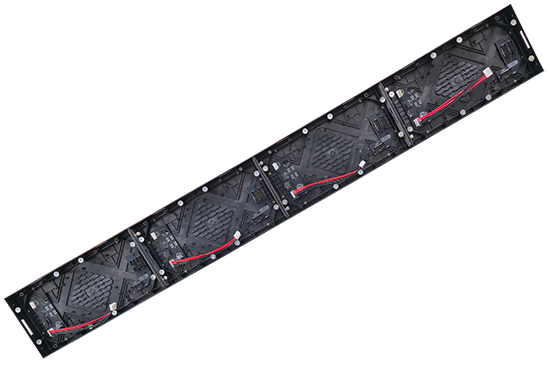

      -Connect the module power line and the data cable.

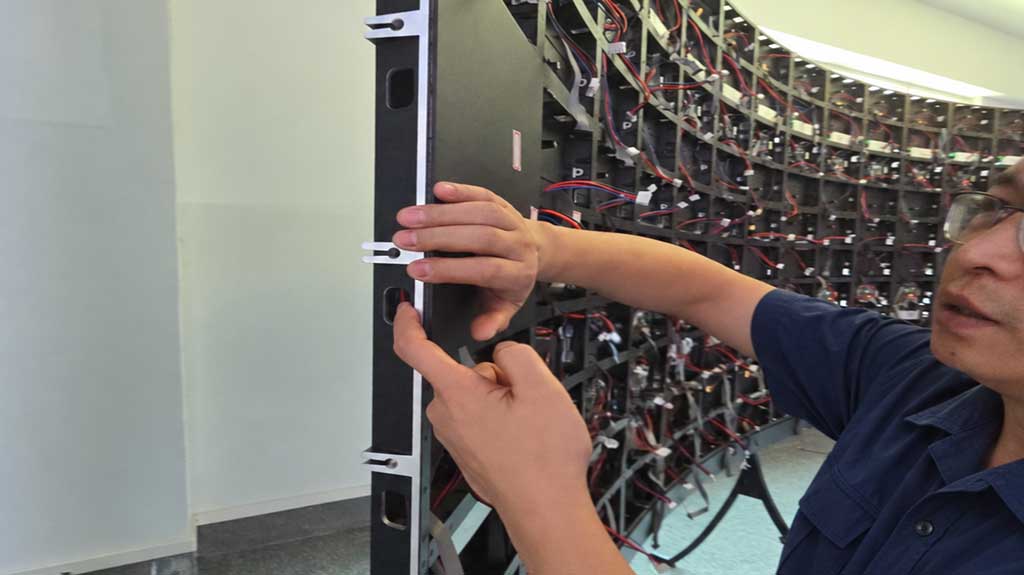

      -Attach the module with the magnet attached to the housing (12 hole modules only).
      -Finish by attaching a plastic bar for the rim.
